195mm Natural Wood Handle Flux Brush Black Bristles for Copper Pipe Soldering

Problem: Uneven Flux Creates Weak Solder Joints

The most common reason a soldered copper joint weeps is uneven flux. Part of the fitting gets flooded, another part barely any, and the solder cannot fill the whole gap.

The joint looks sound when cold, yet it fails under pressure, often weeks after the fitters have left site.

Cause: Why Ordinary Flux Brushes Fall Short

Brush geometry is usually the root cause. Short, stiff bristles carry too little flux, so the fitter overloads the brush and the excess runs down the pipe.

Over-wide heads smear flux past the fitting, wasting material while starving the actual contact area.

Low-grade steel ferrules corrode in acidic flux and shed bristles, adding contaminants that weaken the bond.

Solution: Measured, Contaminant-Free Application

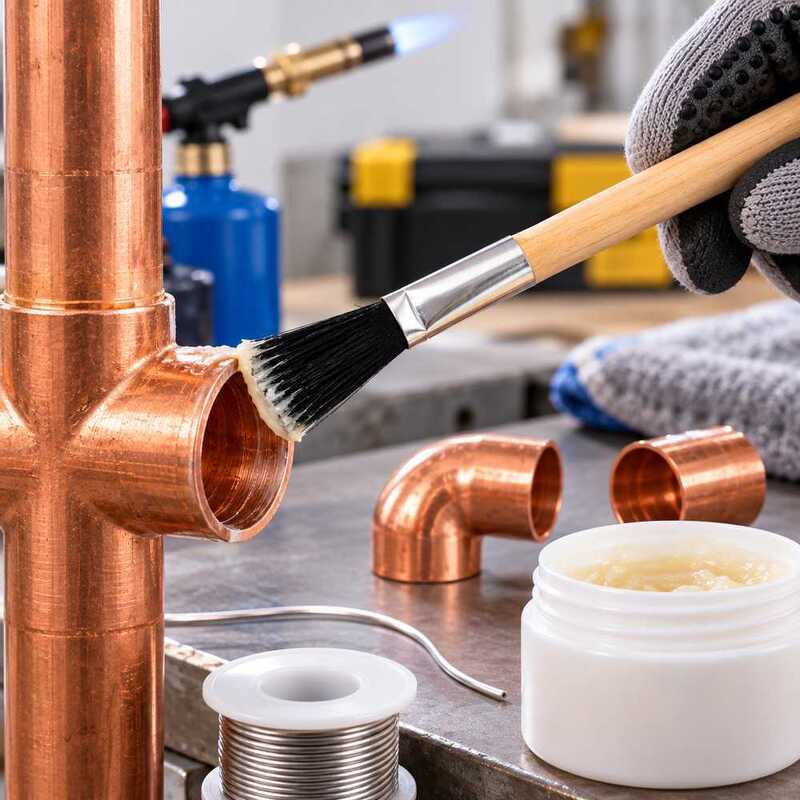

The MT-FB195 uses a 25 x 12mm black natural bristle head that holds a controlled charge of flux and lays it across the socket in one or two strokes.

The 195mm natural wood handle keeps the hand clear of hot pipework and reaches into tight airing cupboards behind boilers.

A crimped aluminium ferrule holds the head tight, preventing bristle shedding and resisting flux attack across hundreds of joints.

Specifications

Selection Guide

Choose a 195mm handle when you routinely work behind boilers, under floors or inside cupboards where reach matters.

For 15mm and 22mm domestic tube, the 25 x 12mm head is the right match; use a shorter brush only for exposed bench work.

If your joints are mostly 28mm and larger, step up to a wider head for fewer strokes per joint.

Application Scenarios

Domestic plumbing soldering on 15mm and 22mm copper, boiler installation and maintenance contractor repairs all suit this brush.

It also works well for HVAC pipework where access is limited and the operator needs to keep a hand clear of live surfaces.

Maintenance and Storage

Flux residues harden bristles if they are left to dry. Rinse the head in warm water after a shift and shake it dry before storage.

Keep the brush out of direct sunlight so the natural wood handle does not dry and crack, and store it bristle-up in the van tray.

Inspect the bristles weekly for splay, and replace the head when the tips no longer hold a clean edge rather than pushing a worn brush through another hundred joints.

Quality and Compliance Notes

Each brush is inspected for bristle retention and ferrule crimp strength before packing, under an ISO 9001:2015 system.

The aluminium ferrule is checked for corrosion resistance, and every handle is examined for a consistent sanded finish with no splinters or raised grain.

Batches are packed to survive export transit, so brushes arrive straight and ready to use instead of splayed against the carton wall. That means fewer rejects on the merchant shelf and fewer returns from the trade counter.

FAQ

How much flux should one joint take?

A single pass of a 25 x 12mm head usually delivers the right film for a 15mm fitting. Add a second light pass only if the socket looks dry.

Will the bristles shed into the joint?

No. The aluminium ferrule is crimped to trap the bristle bundle, so shedding is minimal even after prolonged immersion in flux.

Can I reuse the brush across a shift?

Yes. Rinse the head in water or flux cleaner at the end of the day and store it dry; the wood handle and alloy ferrule both tolerate daily use.

Contact Morita for wholesale pricing, OEM branding and samples.
